沈阳万邦思迅科技有限公司

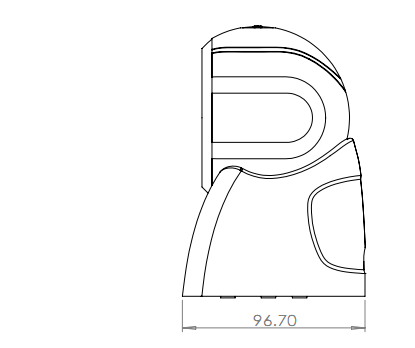

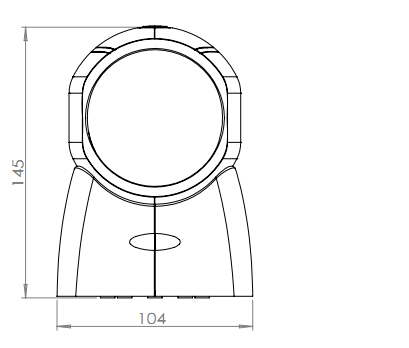

尺寸Dimensions:

96.7mm x 104mm x 145mm

重量Weight:

297.5g

电压Voltage:

5±5% VDC

电流Current:

450mA

性能指标Performance Characteristics

传感器像素Image (Pixels):

640 pixels (H)x 480 pixels (V)

光源Light Source:

Red color LED

视场角Field of View:

50°

旋转倾斜偏转Roll / Pitch / Yaw:

58°(Horizontal) , 45°(Vertical)

打印对比度Print Contrast:

20% minimum reflective difference

接口支持Interfaces Supported:

USB , RS232

移动速度MovementSpeed:

2.5m/s

解码能力Symbology Decode Capability

一维条码/1-D:

Codabar,Code 11, Code 39, Code 93, Code 128/EAN128, EAN.UCC Composite, Interleaved 2 of 5,MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc

二维条码/2-D:

DOT Code, GM, PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post,TLC 39,DataMatrix, etc.

条码精度Minimum Resolution:

≥3.9 mil

用户环境参数User Environment

工作温度Operating Temperature:

-20°C to 60°C

存储温度Storage Temperature:

-30°C to 70°C

湿度Humidity:

5% to 95% relative hum idity,non-condensing

抗震性Shock Specifications:

8 G r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes

环境光免疫Ambient Light Immunity:

0-100,000 Lux.

解码范围Decode Ranges

5 mil (code39)

0mm-60mm

13 mil (code39)

0mm-170mm

15 mil (PDF417)

0mm-60mm

13 mil (UPC-A)

0mm-150mm

30 mil (QR Code)

0mm-130mm

Performance may be impacted by bar code quality and environmental conditions
