打印方式                          热敏/热转印
分辨率（解析度）                  203dpi（8点/mm）
打印宽度                          Max4.1”(104mm)
打印速度                          2~3ips(51~76mm/s)
打印长度                          Max 43”(1092 mm)
内存                              8MB SDRAM 4MB Flash ROM
CPU                               32位微处理器

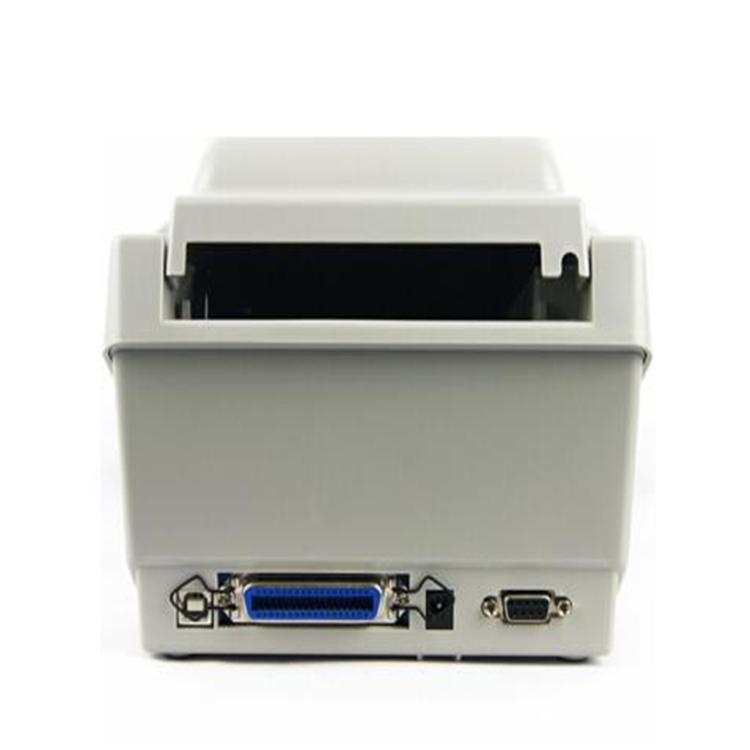

通信接口                          标准并口 串口 USB
显示                              2个LED指示灯
操作界面                          1个按钮
标签感测方式                      居左反射式
操作面板                          LED指示灯x2，按纽x1
字体                              国际标准字符集
                                  5种内建文数字字体可从0.049”~0.23”H (1.25mm~6.0mm)
                                  所有字体皆可放大到24x 24
                                  4个打印方向0~270旋转
                                  可下载Windows兼容True Type Soft Fonts
一维条码                          PPLA: Code39, Code93, Code128/subset A, B and C, Codabar,

                                 Interleaved 2 of 5, UPC A/E/2 and 5 add-on, EAN 13/8, UCC/EAN-128,

                                 UCC/EAN 128 random weight, Postnet, Plessey, HIBC, Telepen, FIM
                                 PPLB: Code39, Code93, Code128/subset A, B and C, Codabar,

                                 Interleaved2 of 5, UPC A/E/2 and 5 add-on, EAN 13/8, UCC/EAN-128,

                                 Postnet,Matrix 2 of 5, Code-128UCC
二维条码                        PPLA/PPLB:Maxicode, PDF-417, Data Matrix(ECC200 only for X2000V PPLZ)
图形                            PPLA/PPLB: PCX, BMP, IMG, HEX, GDI PPLB: PCX, Binary raster, GDI
指令集                          PPLA, PPLB
软件                            Windows驱动程序 (Win7/Win8/XP/Vista)
                                标签制作软件 – BarTender
纸张载体                        连续或间距/ 成卷或风琴折/ 热感, 铜板, 布标/ 吊牌、标签和票据…等
                                最大宽度：4.25”(108 mm) 最小宽度：1.0”(25.4 mm)
                                厚度：0.0025”~0.01”(0.0635 mm-0.254 mm)
                                最大外径：4.3”(109 mm) 轴心尺寸：内径1”(25 mm)
碳带                            Wax, Wax/Resin, Resin
                                碳带宽度：2, 4
                                碳带直径：最大外径 1.45 (37mm)
                                碳带长度：最大92m
                                轴心尺寸：轴心内径0.5 (13 mm) 包括开槽口
电源                            EDAC 通用交换式电源供应器
                                输入: 100V~240V, 1.8A, 50~60Hz
                                输出: 24VDC, 2.5A, 60W Max
安装/标准                       CE, UL, CUL, FCC Class A, CCC
操作温度                        40F~100F(4℃~38℃);10% ~ 90% 无霜
可选配件                        旋刀，4M亚洲字型卡(繁中、简中、韩文和日文) ，時鐘卡
