沈阳海码科技有限公司

打印方式                         热敏/热转印
分辨率（解析度）                 203dpi（8点/mm）
打印宽度                         Max4.1”(104mm)
打印速度                         2~3ips(51~76mm/s)
打印长度                         Max 43” (1092mm)
内存                             8MB DRAM(7MB使用者可用)
                                 4MB Flash ROM(3MB使用者可用)
CPU                              32位RISC微处理器

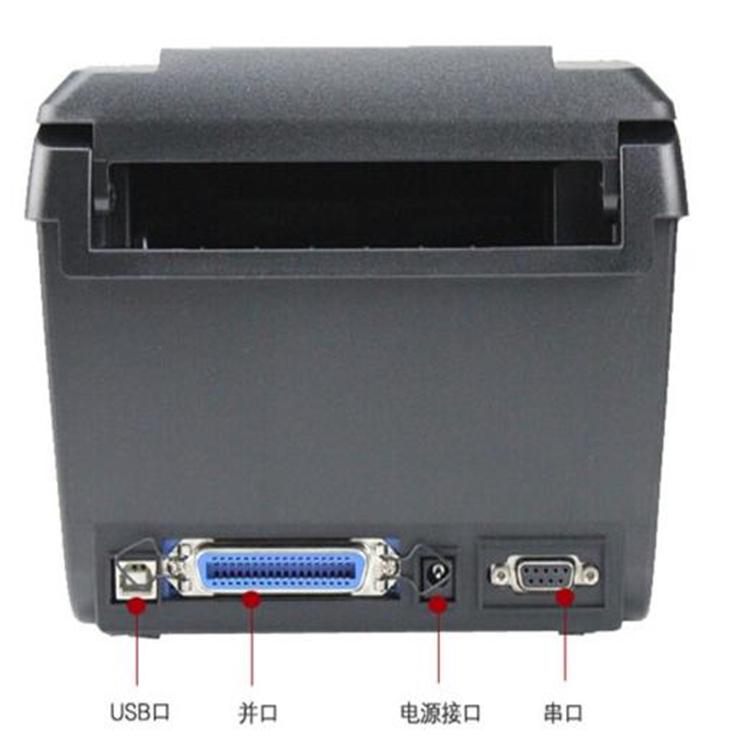

通信接口                         标准并口、RS-232串口、USB
标签感测器                       反射式
显示                             2个LED指示灯
操作界面                         1个按钮
字体                             国际标准字符集
                                 5种内建文数字字体可从0.049”~0.23” H (1.25 mm~6.0 mm)
                                 所有字体皆可放大到24x 24 4个打印方向0°~270°旋转
                                 可下载Windows兼容True Type Soft Fonts
一维条形码                       PPLA: Code39, Code93, Code128/subset A, B and C,

                                 Codebar, Interleaved2 of 5, UPC A/E/2 and 5 add-on, EAN 13/8,

                                 UCC/EAN-128, UCC/EAN 128 random weight, Postnet,Plessey, HIBC,

                                 Telepen, FIM PPLB: Code39, Code93, Code128/subset A, B and

                                 C,Codabar, Interleaved 2 of 5, UPC A/E/2 and 5 add-on, EAN

                                 13/8,UCC/EAN-128, Postnet, Matrix 2 of 5, Code-128UCC

二维条形码                       PPLA/PPLB:Maxicode, PDF-417, Data Matrix

                                 (ECC200 only for X2000V PPLZ),QR Code,Composite codes
图形                             PPLA/PPLB: PCX, BMP, IMG, HEX, GDI, Binary raster(PPLB only)
指令集                           PPLA,PPLB
软件                             Windows驱动程序 (Win 7/Win 8/Vista/XP)
                                 标签制作软件 – BarTender
纸张种类                         纸卷式，标签式（连续纸、间距纸、折叠纸、票券、吊牌...等）
纸张规格                         最大宽度：4.25" (108 mm)
                                 最小宽度：1.0" (25.4 mm)
                                 厚度：0.0025"~0.01" (0.0635mm-0.254mm)
                                 最大外径：4.3" (109mm)
                                 轴心尺寸：内径1" (25.4mm)
碳带                             适用种类：蜡基、混合基、树脂基（外碳带）
                                 碳带宽度：25~110mm
                                 碳带直径：最大外径 1.45” (37mm)
                                 碳带长度：最大92m
                                 轴心尺寸：轴心内径0.5” (12.7mm)(须有notch安装凹洞)
电源                             EDAC 通用交换式电源供应器
                                 输入: 100V~240V, 1.8A, 50~60Hz
                                 输出: 24VDC, 2.5A, 60W Max
安装/标准                        CE,FCC,RoHS,CCC,cTUVus
操作温度                         操作环境：4℃ ~ 38℃(相对湿度10%~90%)，储存环境：-20℃~50℃
可选配件                         旋刀，外挂纸架，内存卡，时钟卡，亚洲字型卡(繁中、简中、韩文和日文)
